Tutorial
Using the tool is extremely simple (we almost didnt bother writing this)

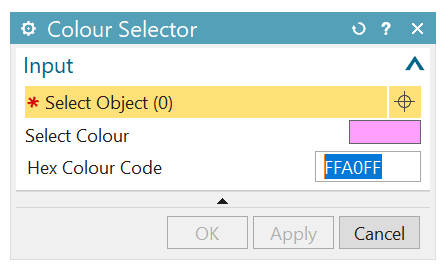

Colour Selector GUI
Input ▸ Select Object
Simple object selection which allows the user to choose any objects in the display window they want to change the colour of.
Input ▸ Select Colour
Opens a conventional (not Siemens NX native) colour picker dialog or by specifying the hex code for the colour you want.
Ok or Cancel
When you are happy with your configuration simply click the ‘OK’ button and you should see the selection appearance change.
Doest not make sense
Maybe?
NOTE
The tool will select the closest available colour from the configured NX pallet not the exact colour you requested.

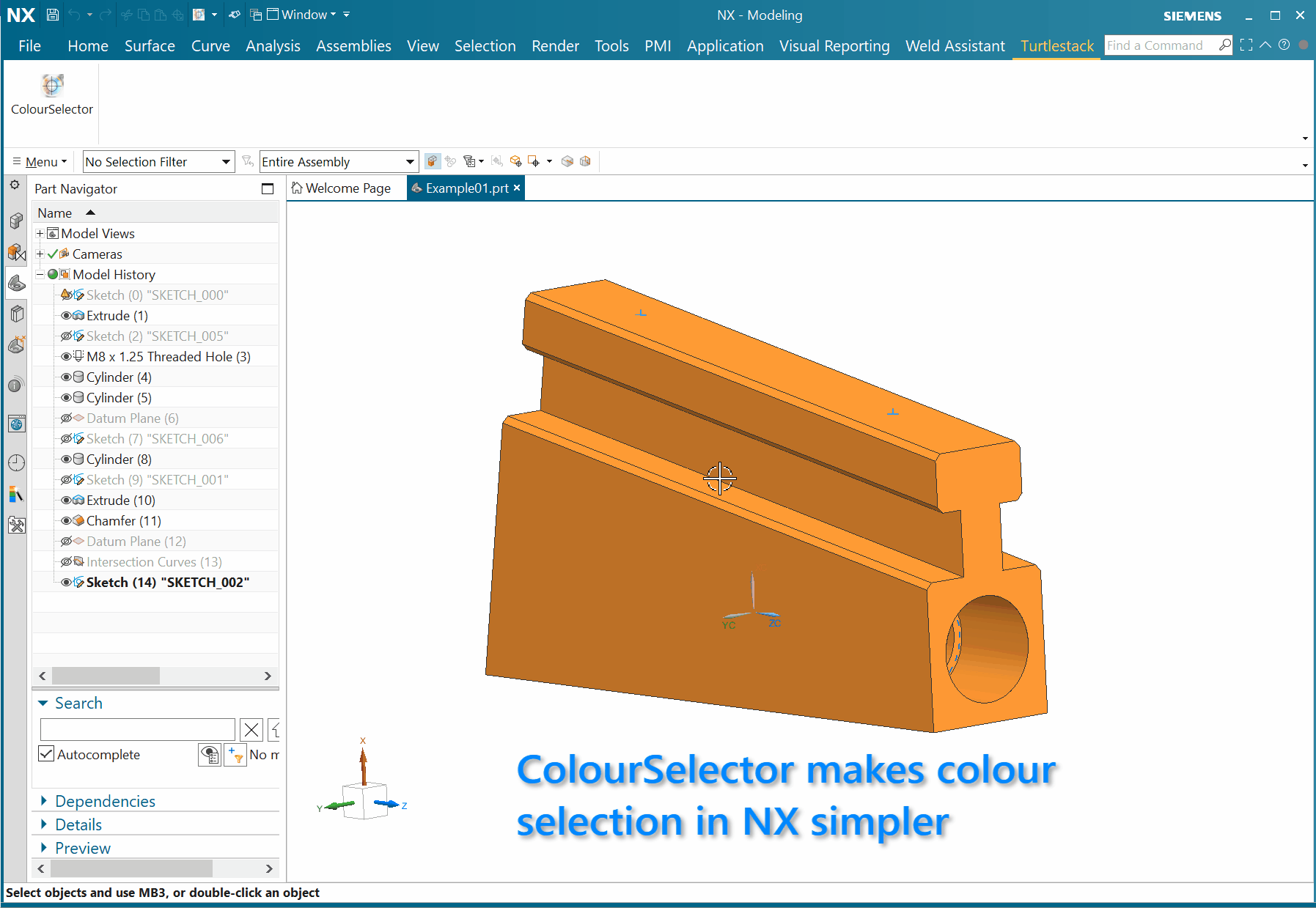

Example Usage
